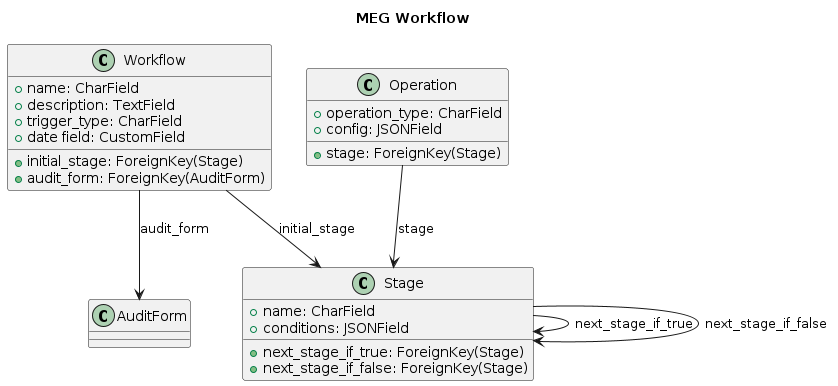

Workflow models

class megworkflows.models.WorkflowQuerySet(model=None, query=None, using=None, hints=None)

for_audit_form(audit_form: AuditForm)

Filter items related to this audit form.

Parameters:

• audit_form – one or more audit form instances

• kwargs – any additional kwargs that sub-classes may accept

Returns:

filtered queryset

class megworkflows.models.Workflow(*args, **kwargs)

The entry point of the workflow, which defines the stages and trigger mechanism.

property scheduled_time: time

Get the scheduled execution time from workflow config.

exception DoesNotExist

exception MultipleObjectsReturned

class megworkflows.models.Stage(*args, **kwargs)

A stage in the workflow which links an operation to the workflow.

clean()

Validate the conditions JSON structure with detailed error messages.

exception DoesNotExist

exception MultipleObjectsReturned

class megworkflows.models.Operation(*args, **kwargs)

Defines an operation to be performed within the workflow.

validate_required_config_fields(required_fields: list) → None

Helper method to validate required fields in the config.

validate_ringfencing_audit_form(auditor: Auditor, form_id: int) → None

Validates that an auditor has access to the specified audit form according to ringfencing rules. Checks if the given form is published and if the auditor has been granted access to it.

Parameters:

• auditor – The Auditor instance whose permissions are being checked

• form_id – The ID of the audit form to validate access for

Raises:

ValidationError – If the form is not published or the auditor lacks access rights

validate_rinfencing_create_observation_for_each_choice(auditor: Auditor) → None

Validates the configuration for creating multiple observations based on multiselect field choices.

For the create-observation-for-each-choice operation type, validates that either: 1. A single audit_form_id is specified and the auditor has access to it, or 2. A properly formatted form_map is provided with valid form IDs and choice mappings

Validates that the form map (‘audit_forms’): 1. Is a list with more than one sub config 2. Has audit_form_id and choice in each sub config 3. Has sub configs with audit forms the user has access to 4. Has no duplicate sub configs

The form_map allows different forms to be used based on specific choices from a multiselect field in the triggering observation.

Parameters:

auditor – The Auditor instance whose permissions are being checked

Raises:

ValidationError – If configuration is invalid, improperly formatted, or references forms the auditor cannot access

validate_ringfencing() → None

Enforces comprehensive ringfencing rules for observation creation operations.

Validates that: 1. Either both ward and auditor are using placeholders, or they are hardcoded (ensuring that the hardcoded values can be ringfenced together) 2. Auditor exists and is allowed access to the ward and audit form(s) 3. For multi-choice operations, validates the form_map configuration

This ensures that the audit form, ward, and auditor comply with ringfencing rules using the existing queryset methods.

Raises:

ValidationError – If any ringfencing rules are violated or if referenced entities don’t exist

validate_no_self_triggering()

Validate that the operation does not create an observation in the same form that triggers the workflow.

validate_create_observation_for_each_choice_for_audit_form(audit_form: AuditForm)

Validates that the choice_field_name in operation config refers to a valid multiple-choice field in the related audit form (Worflows audit form).

Parameters:

audit_form – The form containing the multi-choice field to validate.

Raises:

ValidationError – If the field doesn’t exist or isn’t a multiple-choice field.

property audit_forms: QuerySet

Returns all audit forms from workflows that use this operation’s stage as their initial stage.

validate_create_observation_for_each_choice()

Then, Validates the create_observation_for_each_choice configuration against all workflows connected to this operation’s stage. Ensures the referenced choice field exists in each workflow’s form and is properly configured to support this operation type.

validate_linked_choice_fields()

Validates the linked_choice_fields configuration for web request operations.

Checks that when linked_choice_fields is provided, it contains both ‘single_choice_field_name’ and ‘multi_choice_field_name’ keys and their values.

validate_http_transaction_field_mapping() → None

Validates the http_transaction_field_mapping configuration for web request operations.

Checks that when http_transaction_field_mapping is provided: - All keys are valid HttpTransaction attribute names (url, status_code, body, request_data) - Each value exists as a published CustomField in the workflow audit forms

clean()

Custom validation to ensure necessary fields are present in the config.

trigger_object_custom_fields() → Iterator[str]

returns a set of fields required from the trigger object.

exception DoesNotExist

exception MultipleObjectsReturned
