Ringfencing

Ring-fencing refers to ability to limit what items user can see in the system.

Ward ringfencing

User profile can be limited to a subset of wards in the their institution. If user profile has wards, it means the user is limited to accessing data associated with those wards only. By default, user has access to all wards in the institution.

Note

User access to wards can also be limited per form by overriding user form permissions.

Warning

There are exceptions to the above ringfencing rules:

form setting:

A form can override ringfencing and give user read-only access to observations within that form. This is controlled by setting advanced ward ringfencing form configuration to “Allow user to view data, but not edit”.

Users can also submit data to wards outside their ring-fencing if enable_submission_for_all_wards is enabled.

model field:

In forms having a model field relation to Auditor (user profile) model, user can view observations where they are selected as a choice, including multichoice model fields.

User ringfencing

Typically users can see other users within their institution or institutions (group level users). User’s visibility of other users on the system (even in the same institution) is further ring-fenced based on what forms users have access to.

Currently the two users must have access to the same forms in order to see each other’s account on the system. These rules are implemented in megforms.models.AuditorQueryset.for_auditor().

Note

users who don’t have access to any forms are visible to all other users, but they themselves can only see only users who also don’t have access to any forms.

See also

Ring-fencing by audit form was implemented in Task #22498. The ring-fencing rules may change in the future. Please see Task #25706 for more up to date details and discussion.

Observation ringfencing

Access for a audit form observations can be ringfenced by adding or updating existing AuditorFormPermissions record for required users and audit form then setting up filters field with required filters based on existing CustomField.

{
    "test_select": "A",
    "test_select2": ["B"],
    "test_multiselect": ["A", "B"],
    "test_auditor": "{auditor.id}"
}

A ObservationQueryset can be directly ringfenced using ObservationQueryset.for_form_auditor and ObservationQueryset.for_forms_auditor methods by providing the audit form and auditor arguments.

Note

Filters for any field can be either a single value “A” or multiple values [“A”, “B”], for single choice fields filters would be “exact” and “in” for array values, for multiple choice fields filters would also be “in”.

Model dropdown override

If a user model dropdown or a team model dropdown is added to the form, users selected in this dropdown will have access to the observation. This overrides the following:

• ward ringfencing

• observation ringfencing

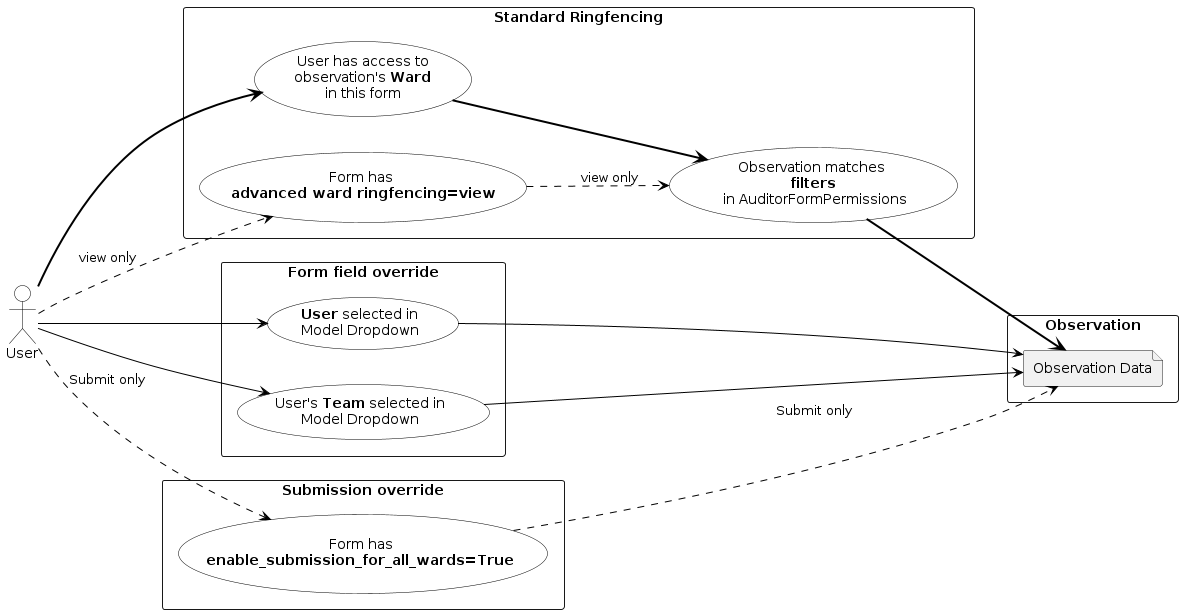

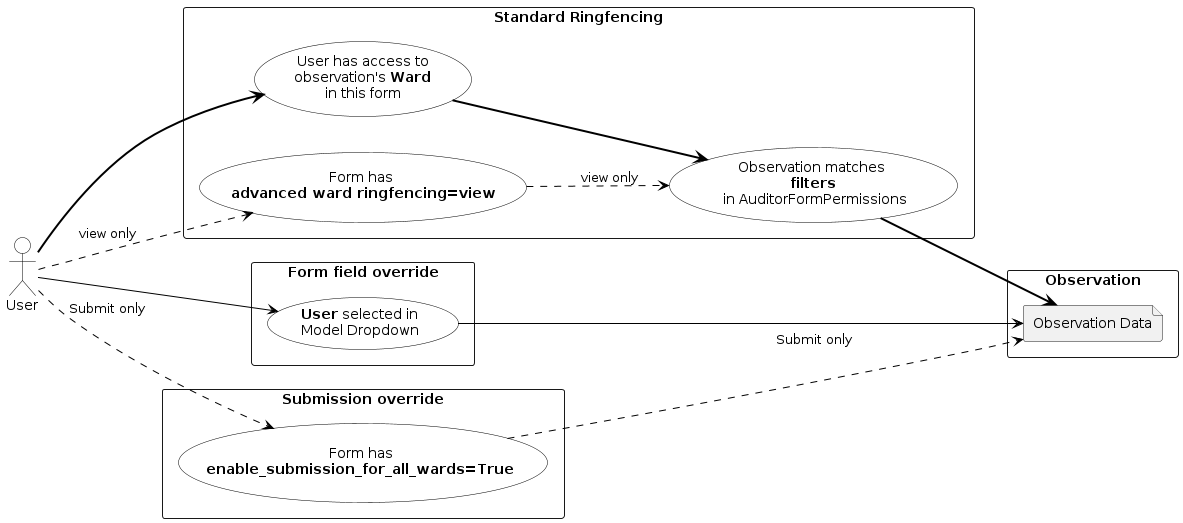

Combining all of the above

The list observations visible to a user is equal to all of the observations in the wards they have access to.

If they have any observation ringfencing applied then that list is further limited based on the filters of the observation ringfencing.

Added to this list are the observations where they’re selected in a model dropdown, which overrides the previous ringfencing rules.
