Staging Sites

Crash reports

Staging sites send crash reports to GitLab Error Tracking

Deploying branches to staging

Any branch can be deployed to the staging site by triggering one of the staging: CI jobs
To see status of the deployment, see environments page or its deploy job.
You can deploy branch and reset database at the same time by triggering a staging:reset job
- It will fix any migration conflicts from previous deployment
- it also deletes any data from database and re-populates it with the dummy data

Adding note

You can add a note to the deployment by setting NOTE in deployment job. The note will appear in the staging sites index page. It will be cleared the next time a deployment job is ran against that staging site.

Stopping Staging Sites

You can manually stop a staging site by triggering the staging:stop CI job.
Staging sites automatically stop at the end of the day (21:00 UTC+0).
You can set a CI/CD variable called DAY before triggering staging:. By setting the day, the staging site will automatically stop at the end of that day (21:00 UTC+0).

To do this, follow these steps:

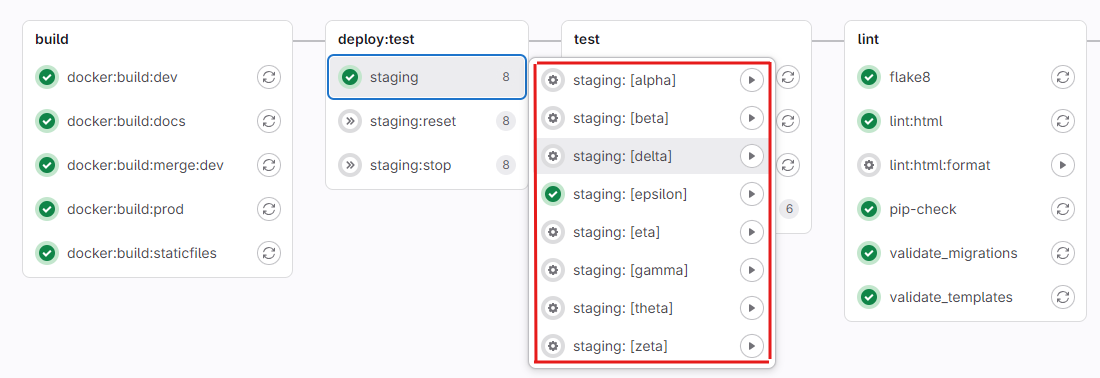

1. Find and Click on the Desired Job: Locate your pipeline and click on the job you want to run (e.g. staging:alpha).

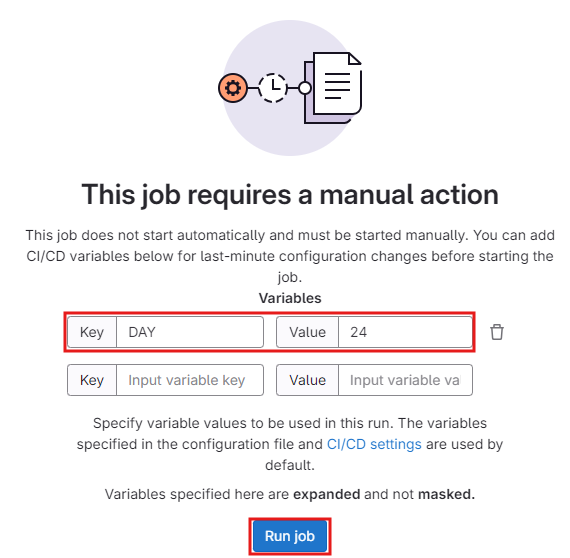

2. Set the Variable and Run the Job: Set an environment variable called DAY as shown in the following image and click Run job.

If set correctly, you will see a 📌 next to the staging site in the index page after deployment.

Important

The format of the GitLab CI variable DAY should be only the day of the month, like 1, 12, 21, 30, etc.

The site will stop on that day, either in the current month or the next, depending on which comes first.

For example:
If you set DAY=10 on 8th October, the site will stop at the end of the day on 10th October.
If you set DAY=1 on 8th October, the site will stop at the end of the day on 1st November.

Creating new Staging environments

Note

These instructions are for Operations team members with access to Azure and the staging kubernetes cluster

Staging site names follow letters Greek alphabet, but additional special-purpose nam have a different name, depending on their purpose (e.g. “master”).

Deploying a new staging site to cluster involves:

Creating a new database on staging postgres server prefixed with “megforms-”
Adding a new recordset to azure.megsupporttools.com and staging.megit.com domains
Deploying the site to a new namespace in the staging kubernetes cluster

Snippet to create a new staging site. Assign NAME the name of the new site in all lowercase characters, with no spaces, for example omega.

export NAME=
# Create database
az postgres flexible-server db create --resource-group MatStaging --server-name matstaging-restored --database-name megforms-${NAME:?}
# Add subdomains to DNS
az network dns record-set cname create --resource-group meg --zone-name "azure.megsupporttools.com" --name "staging-${NAME:?}"
az network dns record-set cname set-record --resource-group meg --zone-name "azure.megsupporttools.com" --record-set-name "staging-${NAME:?}" --cname staging.azure.megsupporttools.com
az network dns record-set cname create --resource-group meg --zone-name "staging.megit.com" --name "${NAME:?}"
az network dns record-set cname set-record --resource-group meg --zone-name "staging.megit.com" --record-set-name "${NAME:?}" --cname staging.megit.com
# Deploy new site to a new namespace in kubernetes
sh/create-region.sh ${NAME:?}

Updating Staging environments

When working on tasks that require interaction with external APIs, it’s often necessary to provide an API key to the staging environment. This allows you to fully test the feature before it moves to production.

The script below iterates through all namespaces in the staging environment and patches the megforms ConfigMap with the specified key-value pair. This ensures that the correct configuration is applied uniformly across the staging environment.

This snippet updates the ConfigMap in each namespace

CONFIG_KEY=
CONFIG_VALUE=

namespaces=$(kubectl get namespaces --context staging -o jsonpath="{.items[*].metadata.name}")
for namespace in $namespaces
do
  kubectl --context=staging -n ${namespace} patch configmap megforms --patch "{\"data\": { \"${CONFIG_KEY:?}\": \"${CONFIG_VALUE:?}\" }}"
done

Note

Some built-in namespaces do not have a “megforms” configmap, which will result in the following error message:

Error from server (NotFound): configmaps “megforms” not found

However, this will not interrupt the loop, so all relevant namespaces will still be updated.
