System architecture
High level

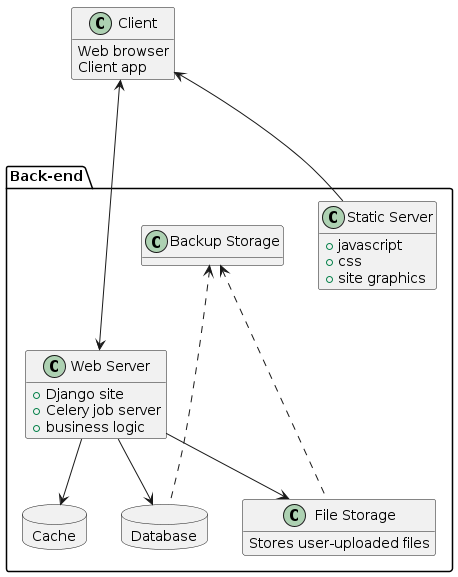

Basic components of the system without implementation detail
Azure
Regions

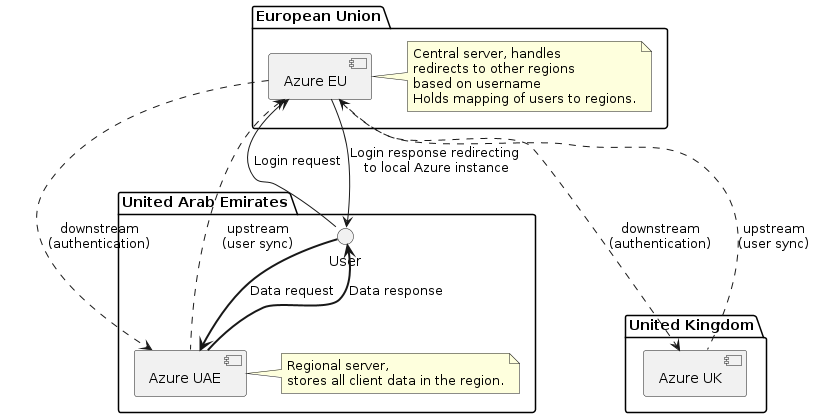

High level architecture showing interaction between regions
![@startuml
package "European Union" {
[Azure EU]
note right of "Azure EU": Central server, handles\nredirects to other regions\nbased on username\nHolds mapping of users to regions.
}
package "United Kingdom" {
[Azure UK]
[Azure EU] ...> [Azure UK]: downstream\n(authentication)
[Azure EU] <... [Azure UK]: upstream\n(user sync)
}
package "United Arab Emirates" {
[Azure UAE]
[Azure EU] ...> [Azure UAE]: downstream\n(authentication)
[Azure EU] <... [Azure UAE]: upstream\n(user sync)
User --> [Azure EU]: Login request
User <-- [Azure EU]: Login response redirecting\n to local Azure instance
User ==> [Azure UAE]: Data request
User <== [Azure UAE]: Data response
note right of "Azure UAE": Regional server,\nstores all client data in the region.
}
@enduml](../../_images/plantuml-26d71f547bb3a738f16670cec5dd657d549c856d.png)
High level inter-region communication
Kubernetes

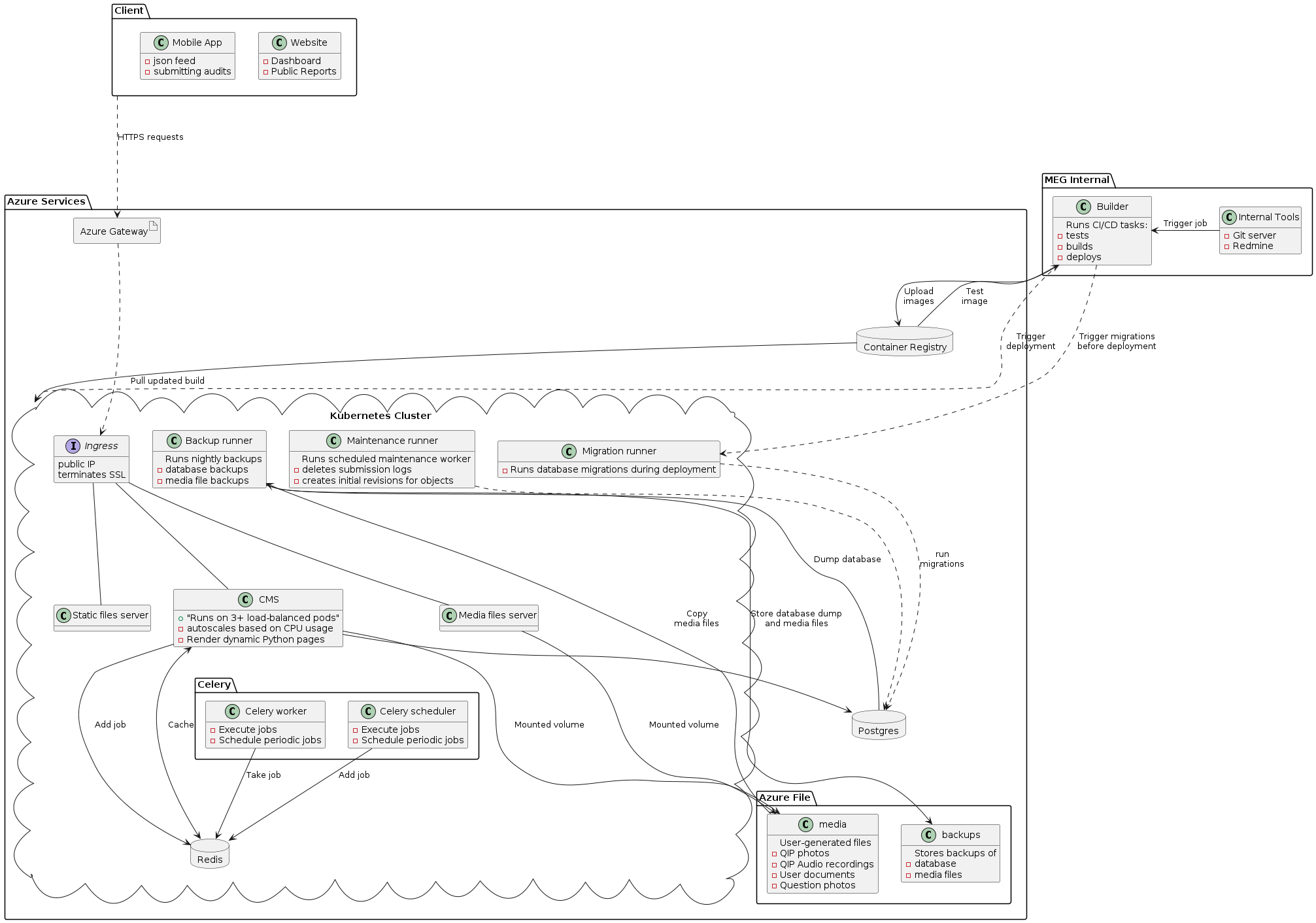

Current architecture implemented in the Azure cloud using Azure Kubernetes Service
![@startuml
hide methods
package "Client" {
class "Website" {
- Dashboard
- Public Reports
}
class "Mobile App" {
- json feed
- submitting audits
}
}
package "Azure Services" {
database "Container Registry" {
}
artifact Gateway [
Azure Gateway
]
database "Postgres" {
}
cloud "Kubernetes Cluster" {
interface Ingress {
public IP
terminates SSL
}
class "Migration runner" {
- Runs database migrations during deployment
}
class "CMS" {
+ "Runs on 3+ load-balanced pods"
- autoscales based on CPU usage
- Render dynamic Python pages
}
class "Static files server" {
+ Serve static files (js, css etc)
}
class "Media files server" {
- serve media files (uploaded by users)
}
package Celery {
class "Celery worker" {
- Execute jobs
- Schedule periodic jobs
}
class "Celery scheduler" {
- Execute jobs
- Schedule periodic jobs
}
}
database Redis {
}
class "Backup runner" {
Runs nightly backups
- database backups
- media file backups
}
class "Maintenance runner" {
Runs scheduled maintenance worker
- deletes submission logs
- creates initial revisions for objects
}
Ingress === CMS
Ingress === "Static files server"
Ingress === "Media files server"
CMS -> Postgres
CMS ---> Redis: Add job
CMS <---> Redis: Cache
"Celery worker" -> Redis: Take job
"Celery scheduler" --> Redis: Add job
"Maintenance runner" ..> Postgres
"Backup runner" -- Postgres: Dump database
"Migration runner" ....> Postgres : run\nmigrations
}
"Container Registry" ==> "Kubernetes Cluster": Pull updated build
package "Azure File" {
class media {
User-generated files
- QIP photos
- QIP Audio recordings
- User documents
- Question photos
}
class backups {
Stores backups of
- database
- media files
}
"Backup runner" ---> backups: Store database dump\nand media files
"CMS" ---> media: Mounted volume
"Media files server" ---> media: Mounted volume
"Backup runner" <-- media: Copy\nmedia files
}
Client ...> "Gateway": HTTPS requests
Gateway ...> "Ingress"
}
package "MEG Internal" {
class Builder {
Runs CI/CD tasks:
- tests
- builds
- deploys
}
class "Internal Tools" {
- Git server
- Redmine
}
Builder <- "Internal Tools": Trigger job
Builder ==> "Container Registry": Upload\nimages
Builder <== "Container Registry": Test\nimage
Builder ...> "Migration runner": Trigger migrations\nbefore deployment
Builder ...> "Kubernetes Cluster": Trigger\ndeployment
}
@enduml](../../_images/plantuml-14a319722aa111e47e821ebb9ceb2370bf66e709.png)
Deployed architecture
On-prem

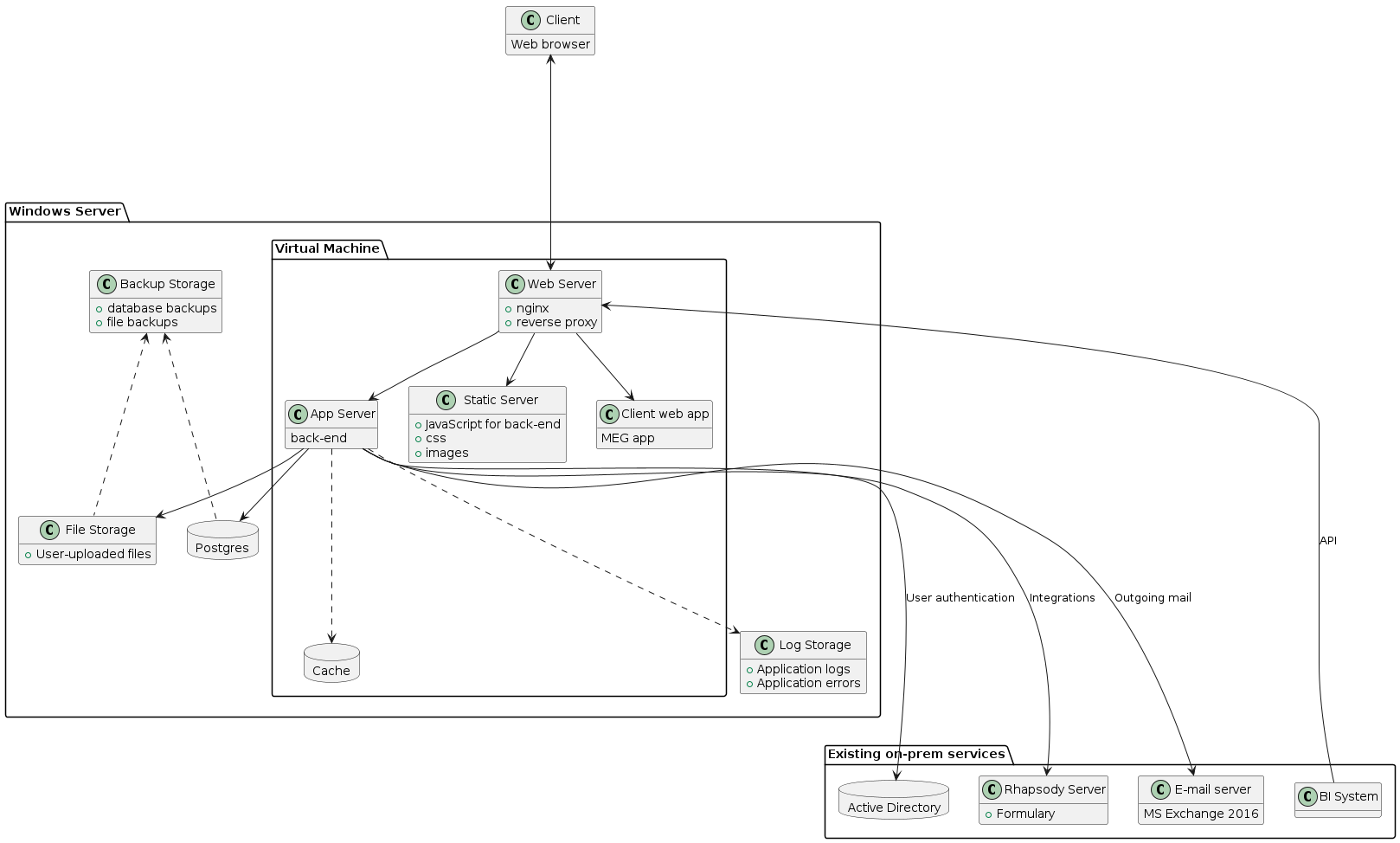

On premises deployment does not take advantage of Kubernetes. It can be hosted in a VM on a single machine. Further details in On-prem documentation.
Architecture planned for King Fahd Military Medical Complex in Saudi Arabia
Security

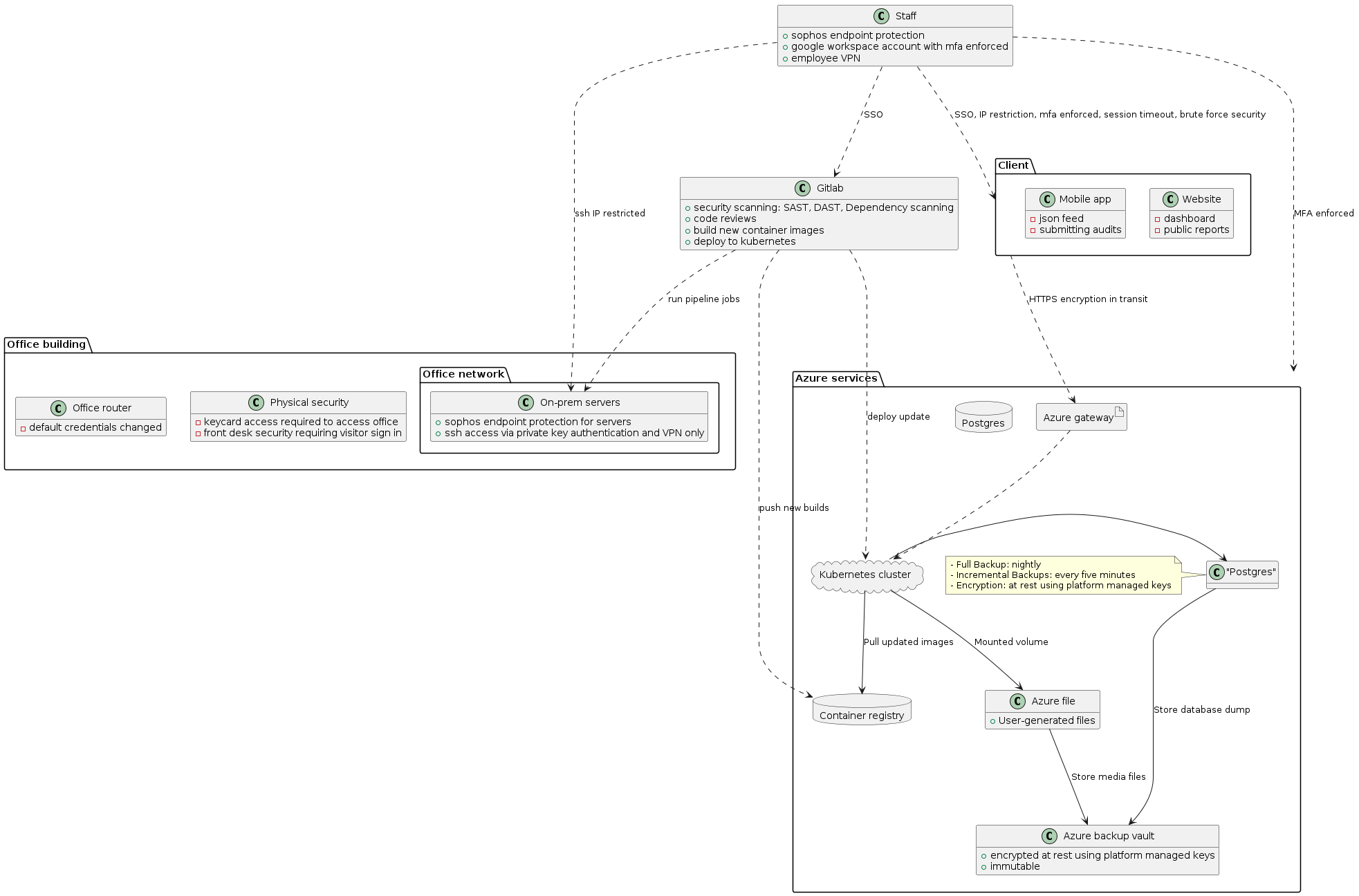

This diagram outlines at a high level the security architecture the meg qms product.
![@startuml
hide methods
package "Client" {
class "Website" {
- dashboard
- public reports
}
class "Mobile app" {
- json feed
- submitting audits
}
}
package "Azure services" {
database "Container registry" {
}
artifact Gateway [
Azure gateway
]
database "Postgres" {
}
note left of "Postgres"
- Full Backup: nightly
- Incremental Backups: every five minutes
- Encryption: at rest using platform managed keys
end note
class "Azure backup vault" {
+ encrypted at rest using platform managed keys
+ immutable
}
cloud "Kubernetes cluster" {
}
class "Azure file" {
+ User-generated files
}
"Postgres" ---> "Azure backup vault": Store database dump
"Kubernetes cluster" ---> "Azure file": Mounted volume
"Azure file" ---> "Azure backup vault": Store media files
"Kubernetes cluster" ---> "Container registry": Pull updated images
Client ...> "Gateway": HTTPS encryption in transit
Gateway ...> "Kubernetes cluster"
"Kubernetes cluster" -> Postgres
}
class Staff {
+ sophos endpoint protection
+ google workspace account with mfa enforced
+ employee VPN
}
package "Office building" {
class "Physical security" {
- keycard access required to access office
- front desk security requiring visitor sign in
}
class "Office router" {
- default credentials changed
}
package "Office network" {
class "On-prem servers" {
+ sophos endpoint protection for servers
+ ssh access via private key authentication and VPN only
}
}
}
class "Gitlab" {
+ security scanning: SAST, DAST, Dependency scanning
+ code reviews
+ build new container images
+ deploy to kubernetes
}
Staff ...> "Gitlab": SSO
Staff ...> "Azure services": MFA enforced
Staff ...> "Client": SSO, IP restriction, mfa enforced, session timeout, brute force security
Staff ...> "On-prem servers": ssh IP restricted
"Gitlab" ...> "Kubernetes cluster": deploy update
"Gitlab" ...> "Container registry": push new builds
"Gitlab" ...> "On-prem servers": run pipeline jobs
@enduml](../../_images/plantuml-42d95d6fe7ff101c0e6a539a3834f96631f69a4d.png)
Security architecture
